GRAIN TERMINAL HANDLING EQUIPMENTS CONVEYORS AND SILO SYSTEM
Through our well experience in the supply of sea port Grain Terminal equipments for more than 20 projects in JAPAN, TAIWAN, INDONESIA, PHILIPPINES. We are confident to provide you the best quality. Most reliable high efficiency and economy invest of Grain Terminal for the operation starting from Grain ship unloading and loading system, conveyors, sieving, inventory and bulk truck load out and bagging out station. Here under is one of typical example for your reference.

TERMINAL LOCATION :

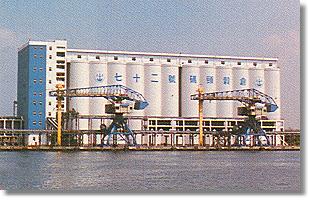

This silo is located on the 72nd. Wharf of the Kaohsiung No. 2 Port which covers 34,100 square meters and is served by a branch railroad which connects with the Tsao-yarh Railroad Terminal. Grains are reloaded into trucks here and sent to inland areas via the free way.

Wharf Conditions :
It's a deep wharf whart, 315 meters long, 19 meters wide. Even at the lowest tide, it still has 14 meters of deep water so that 65,000 ton ships may easily wharf there.

Silo :
Cylindrical grain siloes are constructed with reinforced concrete. Each bin is 42 meters in height, and 9 meters in diameter. There are 48 main grain bins (each has a capacity of 1,500 tons) and 30 secondary grain bins (with a capacity of 280 tons). All together, they have a capacity of 80,400 tons.

Mechanical and Electric Equipment :

  • Working Tower : This tower, as a main control place, is a building of 11 stories, 51 meters in height, 32 meters in length and 17 meters in width.
  • Unloading Equipment : There are 2 sets of chain Type unloaders with an unloading capacity of 750 tons per hour per set.

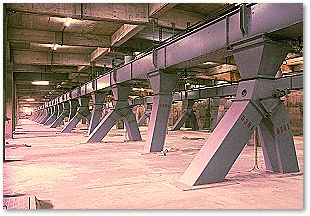

  • Intaking Equipment : There are 2 conveyor belts with an intaking capacity of 825 tons per hour per belt.
  • Outgoing Equipment : There are 4 conveyor belts with an outgoing capacity of 420 tons per hour per belt.

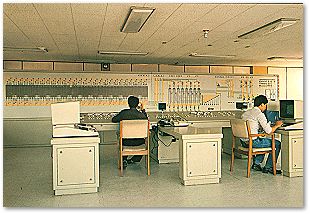

  • Central Control Systems : All operations are controlled by computers.
