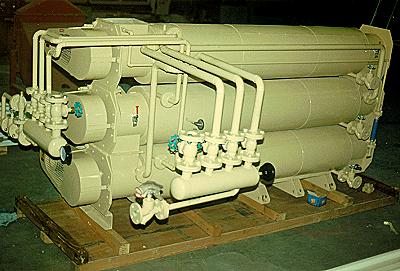

PRE CONDITIONER
for *Extrusions *Pellets *Steam Flaked grain * Grains

This three pass conditioner is special designed for handling shrimp feed and fish feed processing for pelleting system. It performs to heat up the material of aqua feed for better digestion and cook the startch contend in the material become an excellent binding material to improve the water stability and increasing the digestibility. Then the added binder becomes no longer important.

Feature :

  1. Increase water stability
  2. Increase feed digestibility
  3. Replacement of added binder.
MODEL Dimension (mm) Capacity Ton/Hr Drive Motor Condition Time (second) Steam Consumption (Kg/Hr)
CPPS200 300*3000*3pass 2-3 3HP*3pcs 60~150 200
CPPS300 350*3000*3pass 3-4 5HP*3pcs 60~150 300
CPPS400 400*3000*3pass 4-5 7.5HP*3pcs 60~150 400

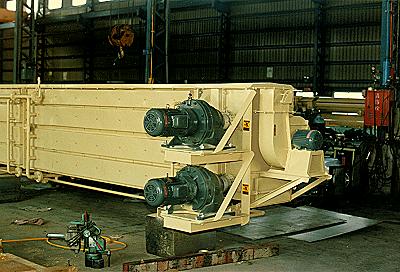

POST CONDITIONER

This is a parent design of  shrimp feed processing with it's simple design, maintenance free and trouble less structure. It become a key machine to increase the feed water stability and feed digestion. This machine works as a "heat oven" with indirect steam heating jacket.

Feature :

  1. Increase water stability
  2. Increase feed digestibility
  3. As a dryer to remove moisture about 2%
MODEL Dimension (mm) Capacity Ton/Hr Drive Motor Condition Time (min.) Steam Consumption (Kg/Hr)
CPC410 400*8000 2-3 2HP 20 80
CPC510 500*10000 3-4 3HP 20 120
CPC610 600*10000 4-6 5HP 20 160
