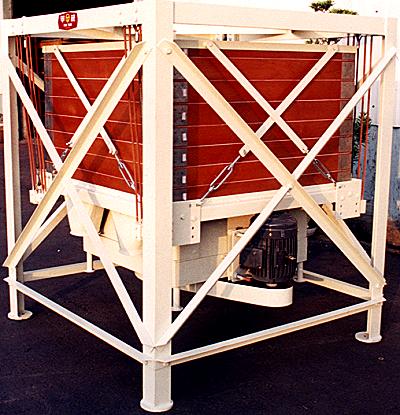

PLAN SIEVE / GRADING SIEVE

CONSTRUCTIONS :

This sieve is constructed by three main parts to perform excellent function for the requirement of sieving up to 99% accuracy. With capacity up to 4 Ton/Hr.

  • The screen decks are square type with screen mesh and jumps to prevent the screen been blocked by materials. It is designed to install the screen decks up nine (9) decks for maximum capacity requirement up to 4 Ton/Hr of shrimp crumble feed grading.
  • Main drive with crank drive which create the vibration for sieving action.
  • Self-stauding structure with hinging plastic rutans at four sides of screen decks.
MODEL Screen Deck Capacity Kg/Hr Drive motor
CGS1000 1 to 9 500-1500 3HP
CGS1200 1 to 9 1500-3000 5-7.5HP
CGS1020 1 to 9 2000-4000 7.5-10HP
