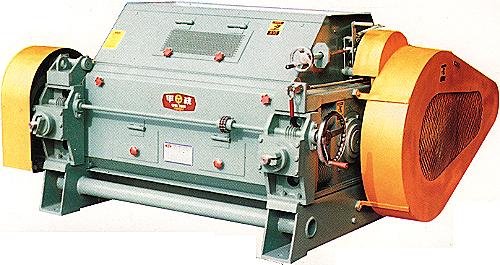

FLAKING MILL FOR GRAIN & CEREALS FOR ANIMAL FEEDS AND HUMAN CONSUMPTION .gif){kind=small} |
|

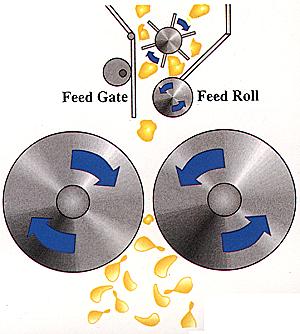

The grains are pressed and
flaked when passing through the two rolls. By the roller feeder above main
rolls. Thickness of produced flake is 0.4 to 2.0mm depending on the adjusting
of gap between two rolls, which can be done by both manual or by Hydraulic
unit. |
| Model | CFM4050 | CFM40100 | CFM46100 | CFM46130 |
| CAPACITY | 1-1.5T/H | 3-4 | 5-6 | 7-8 |
| POWER | 20-30HP | 40-50HP | 50-60HP | 60-75HP |
| ROLLER SIZE | 400*500mm | 400*1000mm | 460*1000mm | 460*1300mm |
 |
