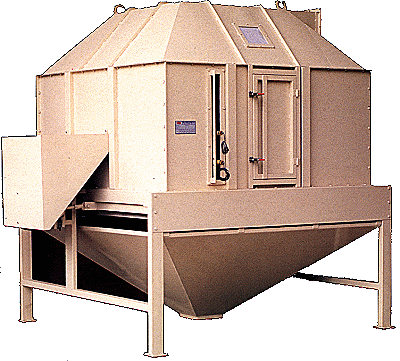

COUNTER FLOW COOLER

ARE YOU LOOKING FOR UNIFORM COOLING AND ENERGY SAVE, PLEASE CHOICE "COUNTER FLOW COOLER"

Production advantages :

  1. Very hygienic operation owing to the small contact surface and the completely rest free system, in accordance to the "First in - First out" system.
  2. No condensation problem thanks to the high final air temperature and the consequent low relative humidity.
  3. Low air consumption owing to application of a completely leak-free counter flow system.
  4. Energy recovery from the used air possible owing to the high final temperature.
Model Capacity Kg/Hr Volume M3 Cooling Time (min) Horse Power
Poultry Ton/Hr Shrimp Poultry Shrimp
CVC 140 6 2.0 2.5 12-15 30-40 2HP
CVC 190 10 3.5 4.5 12-15 30-40 3HP
CVC 240 15 4.5 7.0 12-15 30-40 3HP
CVC 280 20 6.0 9.0 12-15 30-40 5HP
